控制元件 — 3A系列氣控閥
技術參數

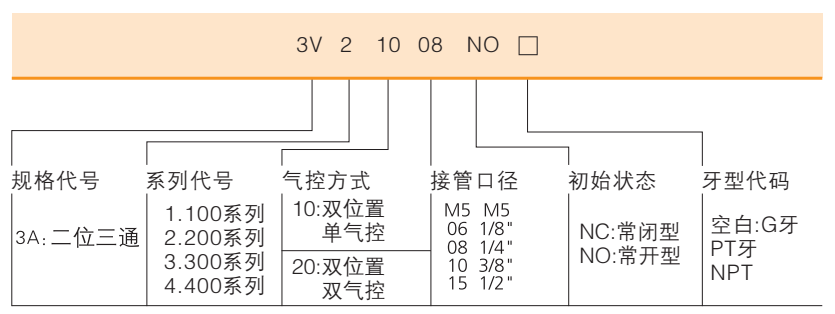

訂貨型號
技術參數
| 型號 | 接管口徑 Rc(G) | 動作方式 | 位通數 | 使用壓力范圍 MPa | |
| 3A110 | M5 | M5 | 外部氣控式 | 二位三通 | 0.15-0.8 |
| 6 | 1/8" | ||||
| 3A120 | M5 | M5 | |||
| 6 | 1/8" | ||||
| 3A210 | 6 | 1/8" | |||
| 8 | 1/4" | ||||
| 3A220 | 6 | 1/8" | |||
| 8 | 1/4" | ||||
| 3A310 | 8 | 1/4" | |||
| 10 | 3/8" | ||||
| 3A320 | 8 | 1/4" | |||
| 10 | 3/8" | ||||
| 3A410 | 10 | 3/8" | |||
| 15 | 1/2" | ||||
| 3A420 | 10 | 3/8" | |||
| 15 | 1/2" | ||||

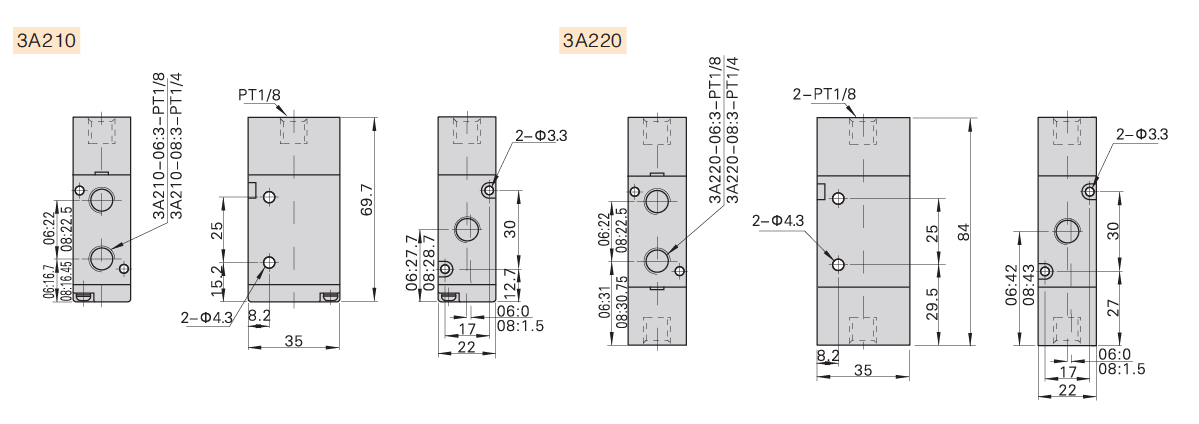

外型尺寸
